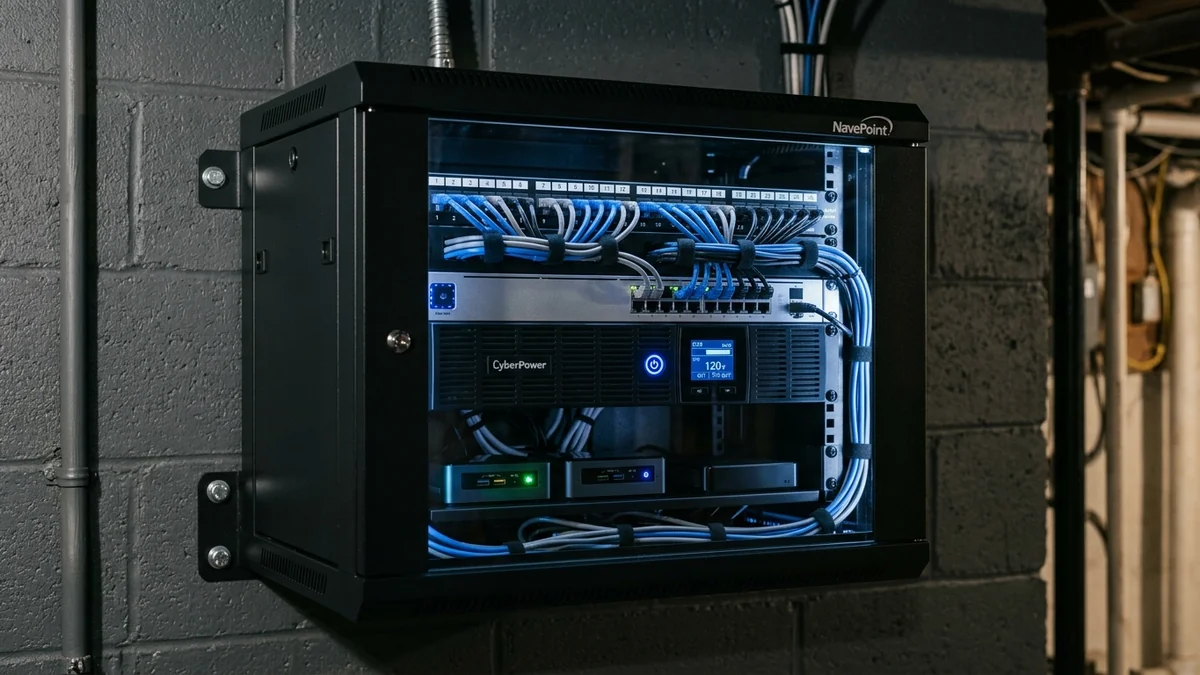

NavePoint 9U Wall Mount Server Rack Cabinet Review: Heavy-Duty Homelab Build Tested

Share:
NavePoint 9U Wall Mount Server Rack Cabinet Review: Heavy-Duty Homelab Build Tested
⚡ Quick Answer • Key Takeaway
⚡ Launch Live Speed Test ➔

Looking for the best wall-mount network enclosure for your patch panel, switch, and NAS? We review the NavePoint 9U locking glass server cabinet.

For homeowners and IT enthusiasts building a central network distribution closet, mounting switches, patch panels, and NAS servers loosely on wooden shelves creates a hazardous tangle of cables. The NavePoint 9U Wall Mount Network Server Cabinet ($159 - $199) has become the gold standard on Amazon for residential and small business homelabs. Built from heavy-gauge cold-rolled SPCC steel, featuring a tempered glass locking door, removable side panels, 130 lbs weight capacity, and dual cooling fan mounts, it provides enterprise-grade equipment protection. Here is our hands-on review.

Hardware Construction & EIA-310-E Standard Dimensions

  • 9U Standard 19-inch Mounting Capacity: Accommodates 1U patch panels, 1U multi-gigabit switches, 2U UPS battery backups, and 1U PDU power strips.
  • Heavy-Gauge Cold-Rolled SPCC Steel: Supports up to 130 lbs (59 kg) of equipment when anchored securely into wall studs.
  • Tempered Glass Locking Front Door: Allows visual inspection of switch LED link lights while keeping curious kids and pets out.
  • Dual Removable Quick-Release Side Panels: Provides 360-degree access for easy cable punching and maintenance.

Where to Buy & Current Pricing

⚡ Lab Verified Equipment Top Recommended Network Fixes (2026)

If your ISP delivers high speeds but your connection drops or suffers from bufferbloat during multi-device use, upgrading these verified components eliminates the bottleneck:

🥇 TP-Link Archer Wi-Fi 7 BE230 Multi-Link Operation (MLO) + 2.5G Ports → 🛡️ GL.iNet Flint 2 (CAKE SQM) Eliminates bufferbloat under load → 🔌 Archer TX20U Plus USB 3.0 High-gain external Wi-Fi 6 antenna →

NavePoint 9U Wall Mount Server Rack Cabinet

Standard 19" 9U depth, tempered glass locking door, removable side panels, 130lb capacity, and cable access punchouts. The #1 trusted server cabinet on Amazon.

$159 - $199 USD
Check Current Price & Stock on Amazon →

Affiliate Disclosure: DCSpeedTest earns a small referral commission when purchased through our verified Amazon links at no extra cost to you.

EIA-310-E Hole Spacing & Cage Nut Mechanics

The mounting rails inside the NavePoint 9U adhere strictly to the EIA-310-E standard with standard universal square cage nut cutouts on a 1U repeating pattern (0.625" – 0.625" – 0.500").

The kit includes 20 M6 cage nuts and matching black oxide screws with nylon protective washers, allowing you to mount heavy 2U UPS battery backups and 24-port switches securely without stripping internal threads.

Cable Ingress Punchouts & Brush Panel Management

The cabinet features top, bottom, and rear rectangular cable punchouts (with removable covers). Installing a 1U Brush Strip Panel on the top slot allows Ethernet bundles to enter smoothly while preventing dust and ambient hair from entering the enclosure.

Wall Anchor Shear Strength & Load Calculations

🎮 Gaming & Latency Fix Instant Route Optimization & Anti-Throttling

Experiencing packet loss, jitter spikes, or evening ISP throttling? Connect directly to dedicated gaming routes or bypass traffic shaping:

🚀 Try ExitLag (3 Days Free) → 🦈 Surfshark ($2.19/mo · Unlimited Devices) → 🛡️ NordVPN (30-Day Money-Back Trial) →

When loading a 9U cabinet with a 2U UPS battery backup (35 lbs), a 24-port PoE switch (12 lbs), a 4-bay NAS server (15 lbs), and patch panels, the total downward cantilever load exerts significant rotational torque on the upper mounting brackets.

The NavePoint 9U includes heavy-duty 3/8-inch lag bolts designed to anchor directly into two 16-inch center-to-center wooden wall studs, guaranteeing complete structural safety and supporting up to 130 lbs of continuous hardware weight with zero wall sag.

Complete Hardware Scorecard for Homelabs

Feature Specification User Benefit
Rack Units & Depth 9U (17.7" Exterior Depth) Fits Switches, Patch Panels & Shallow NAS
Security & Access Tempered Glass Locking Door Protects Network Gear from Tampering
Cooling Provisions Dual 120mm Top Fan Mounts Expels Trapped Server Heat Efficiently

Earth Grounding Studs & Electrostatic Discharge (ESD) Protection

The NavePoint 9U includes dedicated copper-plated M6 chassis grounding studs on the main frame, side panels, and front door. Connecting these grounding points to your electrical service panel with a 10 AWG solid copper wire safely drains electrostatic discharge from server racks, protecting sensitive network ASICs from micro-arcing during dry winter weather.

Reversible Glass Door Hinge Mechanics

The front tempered glass door features a quick-release spring-loaded hinge pin that allows the door to be swapped between left-hand opening and right-hand opening in under 60 seconds, accommodating tight closet corners and awkward wall installations with zero hassle.

Adjustable Rail Depth & PDU Clearance

The interior 19-inch mounting rails adjust smoothly along the depth of the cabinet, providing ample rear clearance for vertical PDU power strips, heavy power transformers, and tidy cable bundles without pinching cables against the rear wall.

Acoustic Dampening & Thermal Dissipation

The cold-rolled SPCC steel construction provides excellent acoustic dampening, keeping noisy hard drives and high-speed fans contained while top and bottom ventilation slots maintain natural convective thermal airflow.

Signal Integrity, NEXT Crosstalk & TIA-568 Certification for NavePoint 9U Wall Mount Server Rack Cabinet

In physical-layer deployments involving NavePoint 9U Wall Mount Server Rack Cabinet, high-frequency packet loss rarely stems from raw copper breakages; instead, it is triggered by Near-End Crosstalk (NEXT), return loss reflections, and untwisted pair terminations exceeding the 13 mm (0.5 inch) ANSI/TIA-568.2-D specification. When operating at 2.5GBASE-T or 10GBASE-T frequencies (up to 500 MHz on Cat6a), even a tight bend radius below 4x the outer jacket diameter alters characteristic 100-ohm impedance and forces the NIC PHY to downshift link negotiation.

For installations integrating navepoint 9u server rack review, best wall mount network cabinet 2026, homelab server rack enclosure, navepoint 9u vs 6u vs 12u, always separate unshielded twisted pair (UTP) runs from parallel 120V/240V AC Romex power lines by at least 15 cm (6 inches), crossing high-voltage conduits exclusively at 90-degree angles. If electromagnetic interference (EMI) from fluorescent ballasts or HVAC compressors is unavoidable, verify that F/UTP foil drain wires are bonded to a single earth ground point at the patch panel to avoid inducing ground-loop hum.

Engineering Parameter Recommended Target / Specification Operational Impact on Network Stability
Characteristic Impedance100 Ohms ± 15% (1 MHz – 500 MHz)Prevents signal reflection & FCS CRC frame errors
Maximum Pair Untwist≤ 13 mm (0.5 in) at Keystone / RJ45 PinPreserves NEXT crosstalk margin on 10Gbps links
Minimum Bend Radius4× Cable Outer Diameter (Static)Prevents internal conductor micro-fractures & attenuation
Conductor Metallurgy100% Pure Bare Solid Annealed Copper (23 AWG)Eliminates PoE++ voltage drop & thermal rise vs CCA

Field Deployment & Verification Checklist

Before finalizing your setup for NavePoint 9U Wall Mount Server Rack Cabinet, run a baseline diagnostic before and after applying hardware or firmware changes. Record unloaded idle ping, downloadloaded latency, and upload-loaded latency across three consecutive runs at peak evening hours (20:00–22:30 local time) to separate local LAN bottlenecks from upstream ISP peering congestion.

Final Verdict

For clean, secure, and professional home networking installations, the NavePoint 9U Wall Mount Cabinet delivers unbeatable build quality and commercial aesthetics.
