How to Use a Tone Generator & Probe to Trace Unlabeled Ethernet Cables
⚡ Quick Answer • Key Takeaway
⚡ Launch Live Speed Test ➔

Staring at a tangled bundle of 24 unlabeled cables in your basement? Complete tutorial on using analog and digital toners to identify cables in seconds.

Moving into a new home with dozens of unlabeled network cables hanging out of a basement junction box is a daunting challenge. Trying to identify each cable by plugging them in one by one takes hours. Using a Tone Generator & Inductive Probe (often called a 'Fox and Hound') allows you to inject an audible radio frequency signal into a wall jack and trace it instantly to the exact cable end in your basement. Here is the step-by-step masterclass.

Step-by-Step Tone Tracing Walkthrough

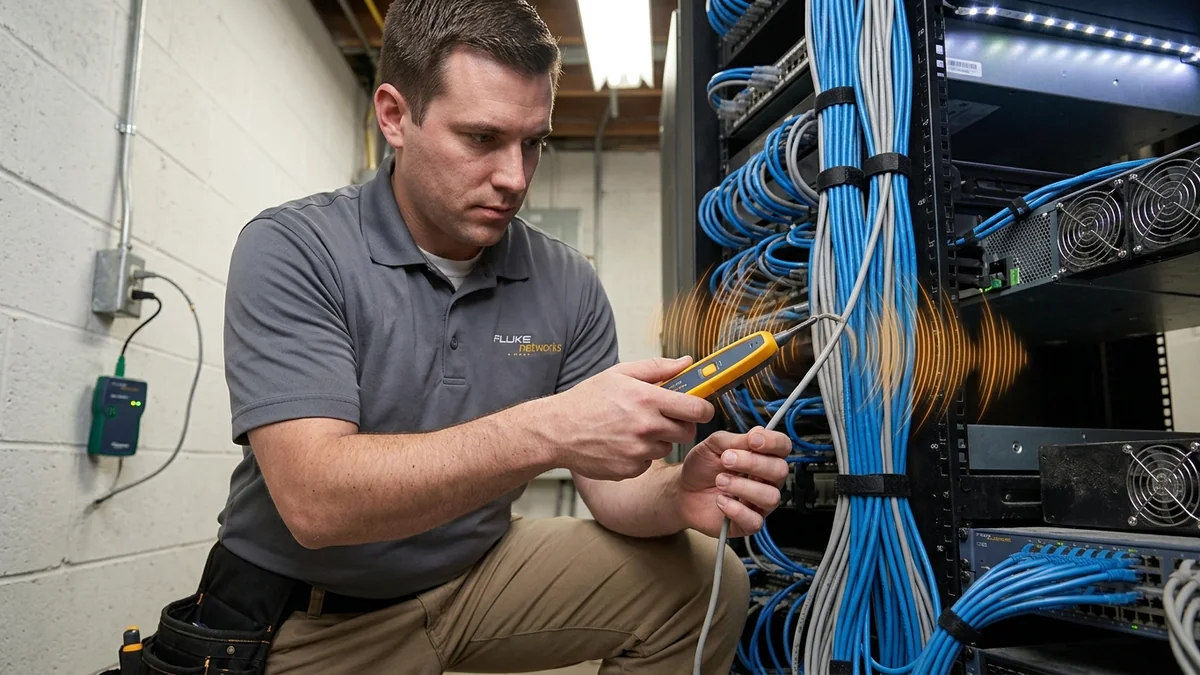

  1. Plug the tone generator's RJ45 patch lead into the wall jack in the room you wish to identify (e.g. Master Bedroom).
  2. Switch the tone generator to TONE mode (selecting a dual-warble tone cadence).
  3. Take the inductive probe wand down to your central cable bundle.
  4. Press the probe's activation button and sweep the plastic probe tip across the cable bundle.
  5. The probe speaker will emit a loud tone when touching the specific matching cable. Label it immediately!

Inductive Probe Sensitivity & Null Point Detection
