When an in-wall Ethernet cable fails, knowing that a wire is broken is only half the battle; knowing where the wire is broken saves you from tearing down hundreds of feet of drywall. Time Domain Reflectometry (TDR) is a radar-like technology built into advanced cable testers that measures the round-trip travel time of an electrical pulse to calculate exact cable length and pinpoint wire breaks within inches. Here is how it works.
The Physics of Time Domain Reflectometry (TDR)

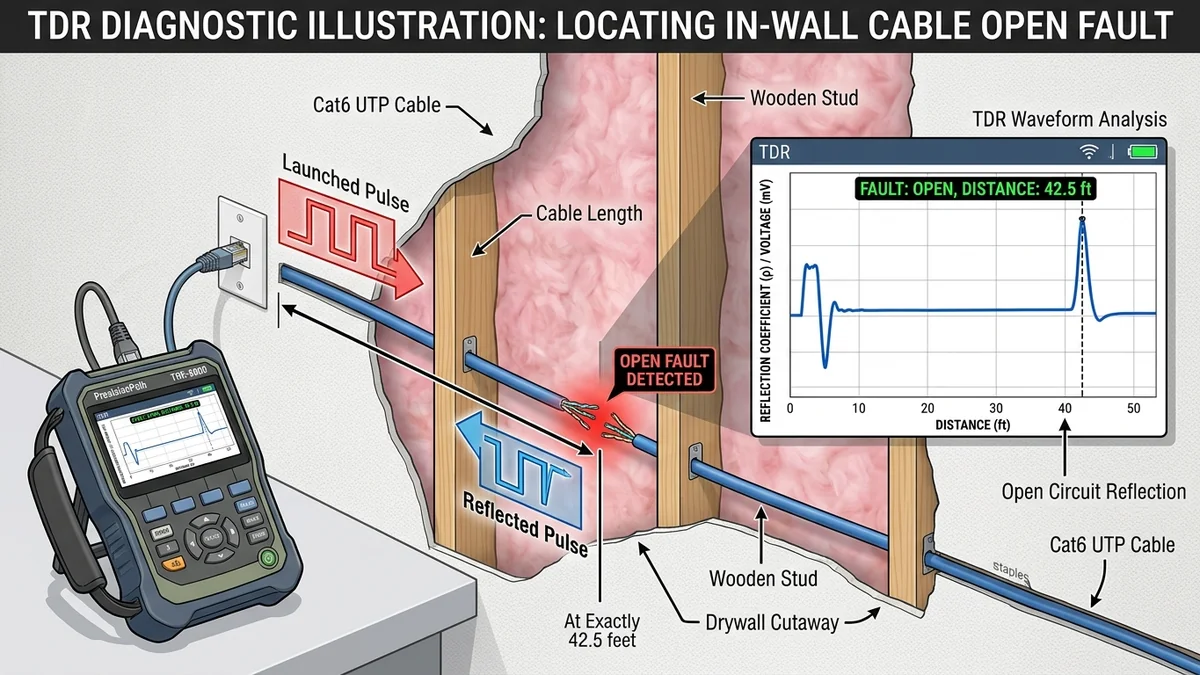

A TDR tester transmits a nanosecond-fast electrical pulse down the copper conductor. As long as the cable maintains uniform impedance (100 Ohms), the pulse travels forward smoothly. When the pulse encounters an impedance discontinuity (an open cut or short circuit), a portion of the electrical energy reflects back to the tester.
By measuring the time delta ($\Delta t$) and multiplying by the cable's Nominal Velocity of Propagation (NVP $pprox 0.70c$), the tester calculates the exact distance ($D = rac{v imes \Delta t}{2}$) to the fault in feet or meters.
Calculating Distance to In-Wall Cable Faults
If your ISP delivers high speeds but your connection drops or suffers from bufferbloat during multi-device use, upgrading these verified components eliminates the bottleneck:
When a cable tester reports an "OPEN at 42.5 feet" on a 100-foot run, you can measure 42.5 feet along the drywall cable pathway from the tester location to find the exact point where a drywall nail, screw, or rodent chewed through the conductor.
This allows targeted drywall inspection without tearing down entire walls or re-running hundreds of feet of new cabling.
Best Practices for TDR Accuracy
- Ensure the far end of the cable is completely disconnected (unterminated or open) for open-circuit testing.
- Calibrate the tester's NVP setting using a 50-foot reference spool of the exact same cable brand.
- Keep test leads short (under 1 foot) to minimize baseline capacitive offset.
Diagnosing High-Resistance Kinks & Cable Pinching
TDR testers do not just detect complete breaks; they also detect severe cable kinks and tight zip-tie pinches. When an Ethernet cable is pinched tightly around a wooden joist, the change in conductor spacing causes a local impedance spike ($Z_0 > 120\Omega$).
The TDR tester displays a partial reflection curve at that exact foot marker, allowing you to loosen over-tightened zip ties before deploying multi-gigabit network traffic.
Complete TDR Measurement Summary
Experiencing packet loss, jitter spikes, or evening ISP throttling? Connect directly to dedicated gaming routes or bypass traffic shaping:
Time Domain Reflectometry is the single most powerful diagnostic technology in modern cable testing, turning guesswork into exact mathematical distance measurements.
TDR Reflection Waveform Analysis on Modern Testers
Advanced graphic TDR testers display the actual reflected voltage waveform: a positive voltage spike indicates an Open Circuit ($Z_L = \infty$), while a negative downward voltage spike indicates a Short Circuit ($Z_L = 0$), providing instant electrical diagnosis of in-wall wiring faults.
Compensating for Temperature Drift in TDR Measurements
As copper cables heat up inside hot summer attics (reaching 50°C / 122°F), electrical resistivity increases slightly, causing pulse propagation speed to slow down. High-end TDR testers incorporate automatic thermal compensation to maintain distance measurement accuracy within ±1% regardless of attic temperatures.
Testing Coaxial TV Cables with TDR Adapters
By attaching an F-type coaxial adapter to your TDR tester, you can measure the exact length of in-wall RG6 coaxial TV lines and pinpoint the distance to damaged splitters or disconnected wall plates throughout your home.
Measuring Spool Length Before In-Wall Pulls
Before pulling a long cable run through a multi-story house, connect your TDR tester to the bulk cable spool to verify that you have enough remaining footage (e.g. 150ft remaining), preventing the nightmare of running out of cable halfway through an in-wall pull.
Measuring Coaxial TV Cables with TDR Adapters
Attaching an F-connector coaxial adapter to your TDR tester allows you to measure in-wall RG6 cable distances, test splitters, and locate coax cable breaks across your entire home.
