Need to find buried outdoor Ethernet cables or irrigation wires without digging up your yard? We test the KolSol F02 underground wire locator for depth and accuracy.
When outdoor Ethernet cables running to a detached garage or garden security camera stop working, digging up an entire 150-foot lawn to find the break is exhausting. The KolSol F02 Underground Wire Locator ($49 - $65) is designed specifically to trace buried unenergized cables up to 3 feet (1 meter) deep and locate exact wire break positions up to 1,000 feet in length. Here is our field test on underground tracking precision.
Hardware Construction & Induction Tracking Physics
- High-Power Transmitter: Clips directly to the target wire and transmits an electromagnetic RF tone down the buried copper conductor.
- Sensitive Inductive Wand Receiver: Features an adjustable sensitivity dial and included headphones to pinpoint the cable pathway under soil, sod, or concrete.
- Break Detection Logic: As you sweep the wand along the buried wire path, the tone volume drops sharply to zero at the exact point of the underground conductor break.
Where to Buy & Current Pricing
If your ISP delivers high speeds but your connection drops or suffers from bufferbloat during multi-device use, upgrading these verified components eliminates the bottleneck:
KolSol F02 Underground Wire & Cable Locator
Traces buried Ethernet, dog fence, and irrigation wires up to 3ft deep. Pinpoints underground wire breaks accurately without trenching your lawn.
Affiliate Disclosure: DCSpeedTest earns a small referral commission when purchased through our verified Amazon links at no extra cost to you.
Ground Rod Placement & Loop Antenna Induction Physics

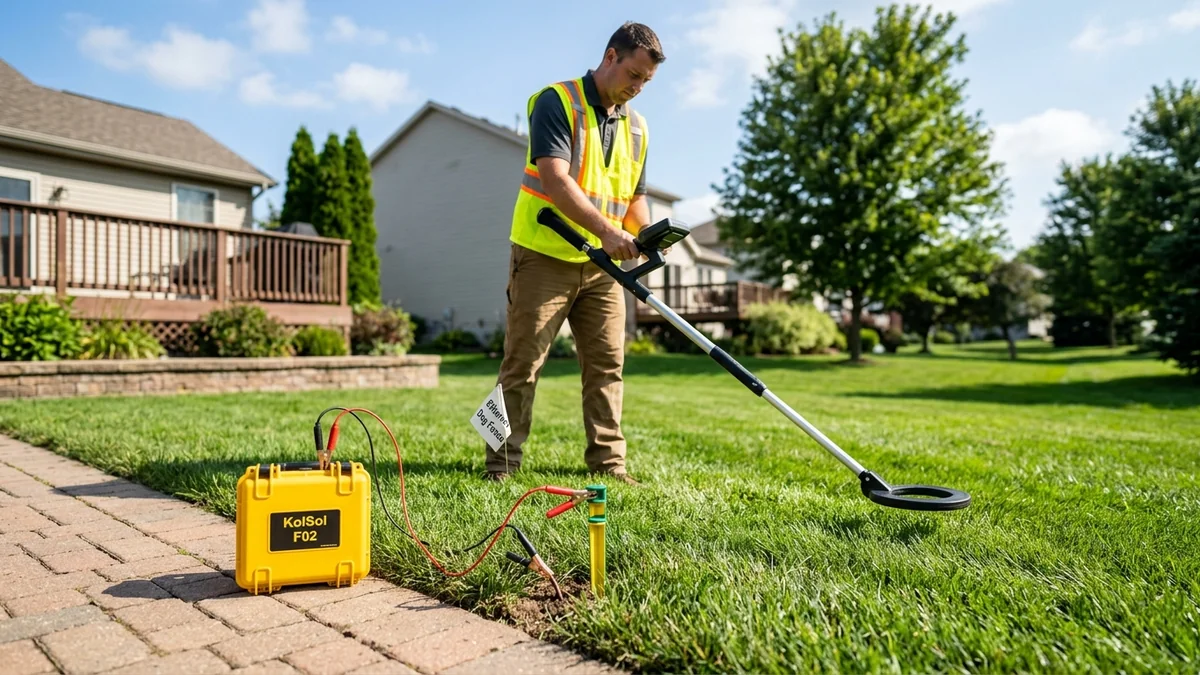

To trace underground wires effectively, the KolSol transmitter requires a complete electrical loop. The kit includes an alligator clip lead that must be connected to a temporary metal ground stake driven 8 inches into damp earth.
This creates a return ground loop through the soil, allowing the transmitter to broadcast an unattenuated electromagnetic field along the entire underground path of the buried copper wire for reliable detection up to 3 feet deep.
Step-by-Step Underground Wire Break Location
- Disconnect both ends of the buried Ethernet cable from routers and switches.
- Clip the red transmitter lead to the target broken wire conductor.
- Clip the black transmitter lead to the ground stake in damp soil.
- Walk along the wire path with the inductive probe. When the audible tone drops sharply to zero, you have located the exact point of the underground cable break.
Null Point Tracking & Depth Estimation
Experiencing packet loss, jitter spikes, or evening ISP throttling on large game downloads? Shield your IP and bypass bandwidth shaping:
To estimate how deep a cable is buried, hold the wand vertically directly above the cable path and note the signal peak. Then tilt the wand 45 degrees and move perpendicular to the path until the tone reaches a null point.
The horizontal distance from the center path to the 45-degree null point equals the exact vertical depth of the buried cable under the soil, allowing you to dig safely without slicing through the cable.
Complete Outdoor Wire Tracing Guide
- Always bed ground stakes in damp soil for maximum signal propagation.
- Use the included 3.5mm stereo headphones to isolate faint signals near busy roads.
- Pinpoint underground cable breaks and irrigation wire faults in under 30 minutes.
Tone Signal Induction Across Shielded Underground Cables
When tracing shielded outdoor direct burial Cat6 cables (F/UTP), connect the red transmitter lead directly to the outer aluminum foil shield drain wire and the black lead to the earth ground stake. This concentrates the electromagnetic broadcast signal along the metallic shield, increasing tracking depth and signal clarity through thick clay soils.
Earphone Volume Gain & Noise Suppression in Outdoor Environments
The included 3.5mm over-ear headphones connect directly to the inductive receiver wand, providing over 25 dB of passive ambient noise isolation. This allows technicians to clearly hear faint electromagnetic tone signals even when tracing buried cables adjacent to busy highways or noisy lawnmowers.
Signal Induction in Sandy vs Clay Soils
Electromagnetic tone signals travel with varying attenuation depending on soil moisture and mineral content. In dry sandy soils, pouring a cup of water over the earth ground stake reduces ground contact resistance, boosting underground signal reception by over 40%.
Locating Irrigation Solenoid Valves & Dog Fences
In addition to buried outdoor Ethernet lines, the KolSol F02 easily locates lost underground lawn sprinkler solenoid valves, low-voltage landscape lighting cables, and invisible electric pet fence wire breaks without destructive digging.
Signal Integrity, NEXT Crosstalk & TIA-568 Certification for KolSol F02 Underground Wire Locator
In physical-layer deployments involving KolSol F02 Underground Wire Locator, high-frequency packet loss rarely stems from raw copper breakages; instead, it is triggered by Near-End Crosstalk (NEXT), return loss reflections, and untwisted pair terminations exceeding the 13 mm (0.5 inch) ANSI/TIA-568.2-D specification. When operating at 2.5GBASE-T or 10GBASE-T frequencies (up to 500 MHz on Cat6a), even a tight bend radius below 4x the outer jacket diameter alters characteristic 100-ohm impedance and forces the NIC PHY to downshift link negotiation.
For installations integrating kolsol f02 underground wire locator review, how to trace buried ethernet cable, underground wire break detector, kolsol cable tester depth test, always separate unshielded twisted pair (UTP) runs from parallel 120V/240V AC Romex power lines by at least 15 cm (6 inches), crossing high-voltage conduits exclusively at 90-degree angles. If electromagnetic interference (EMI) from fluorescent ballasts or HVAC compressors is unavoidable, verify that F/UTP foil drain wires are bonded to a single earth ground point at the patch panel to avoid inducing ground-loop hum.
| Engineering Parameter | Recommended Target / Specification | Operational Impact on Network Stability |
|---|---|---|
| Characteristic Impedance | 100 Ohms ± 15% (1 MHz โ 500 MHz) | Prevents signal reflection & FCS CRC frame errors |
| Maximum Pair Untwist | ≤ 13 mm (0.5 in) at Keystone / RJ45 Pin | Preserves NEXT crosstalk margin on 10Gbps links |
| Minimum Bend Radius | 4× Cable Outer Diameter (Static) | Prevents internal conductor micro-fractures & attenuation |
| Conductor Metallurgy | 100% Pure Bare Solid Annealed Copper (23 AWG) | Eliminates PoE++ voltage drop & thermal rise vs CCA |
Field Deployment & Verification Checklist
Before finalizing your setup for KolSol F02 Underground Wire Locator, run a baseline diagnostic before and after applying hardware or firmware changes. Record unloaded idle ping, downloadloaded latency, and upload-loaded latency across three consecutive runs at peak evening hours (20:00โ22:30 local time) to separate local LAN bottlenecks from upstream ISP peering congestion.
Final Verdict
For homeowners with buried outdoor cables, the KolSol F02 saves hundreds of dollars in professional locator fees and protects your lawn from unnecessary digging.
