Concerned about MoCA overlapping with your cable modem? We explain DOCSIS 3.1 frequency spectrum, high-split filters, and how to prevent interference.

A common question among homeowners planning a MoCA installation is whether MoCA signals will slow down their DOCSIS 3.1 cable internet (Xfinity, Spectrum, Cox) or disrupt live cable TV channels. The short answer is: when configured with the proper frequency band and PoE filters, MoCA operates in complete harmony with cable broadband. Here is the engineering breakdown of frequency channels and how to prevent potential overlaps.

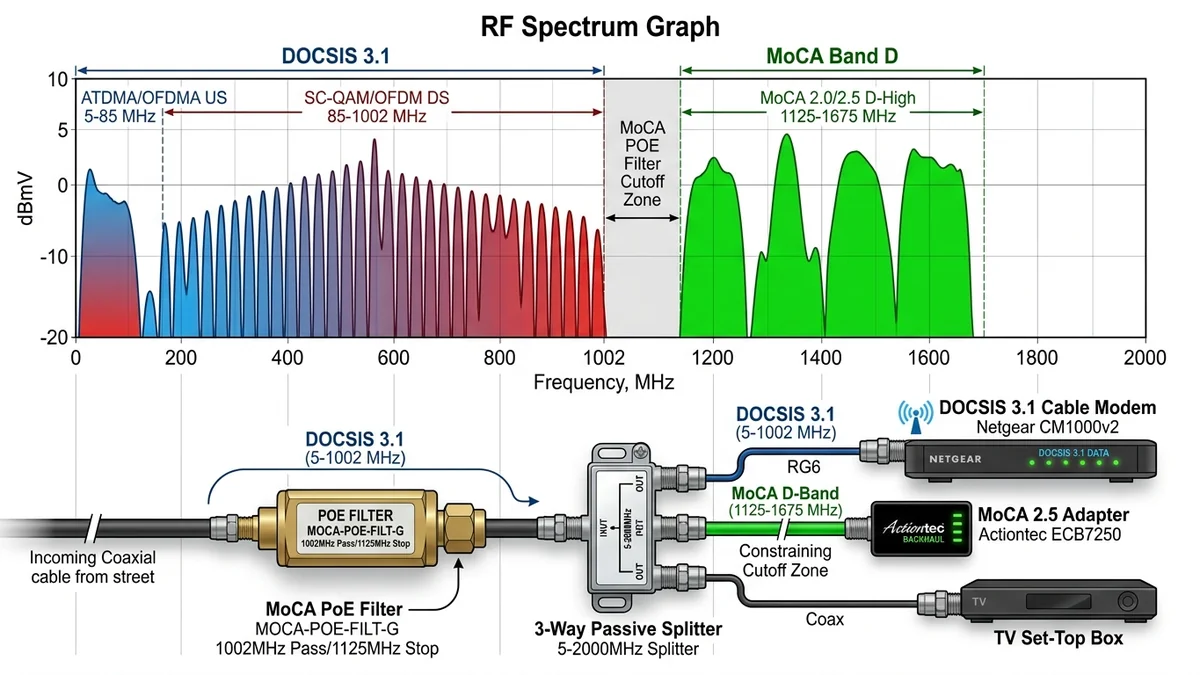

Frequency Spectrum Allocation Map

Service / Protocol Operating Frequency Range Overlap Potential with MoCA
Legacy Cable TV Channels 54 MHz – 550 MHz Zero Overlap (Completely Safe)
Standard DOCSIS 3.0 / 3.1 Downstream 108 MHz – 1002 MHz Zero Overlap (Safe)
MoCA 2.5 Extended Band D 1125 MHz – 1675 MHz Operates in Clean High Frequencies
DOCSIS 3.1 High-Split (Mid/High Split) Up to 1218 MHz Requires Band D-Low Toggle (ASUS MA-25)

How to Prevent Interference in High-Split DOCSIS 3.1 Homes

⚡ Lab Verified Equipment Top Recommended Network Fixes (2026)

If your ISP delivers high speeds but your connection drops or suffers from bufferbloat during multi-device use, upgrading these verified components eliminates the bottleneck:

🥇 TP-Link Archer Wi-Fi 7 BE230 Multi-Link Operation (MLO) + 2.5G Ports → 🛡️ GL.iNet Flint 2 (CAKE SQM) Eliminates bufferbloat under load → 🔌 Archer TX20U Plus USB 3.0 High-gain external Wi-Fi 6 antenna →
  1. Install a dedicated MoCA Ground Block PoE Filter on the input of your cable modem.
  2. Use MoCA adapters with selectable frequency bands (like the ASUS MA-25 set to Band D-Low).
  3. Separate your cable modem onto a dedicated direct coax run if possible.

Why High-Split DOCSIS 3.1 Upgrades Matter in 2026

Cable internet providers (such as Comcast Xfinity with "Next Gen Speed" and Charter Spectrum with "High-Split") are upgrading their cable plant to deliver symmetrical gigabit upload speeds. To achieve this, the cable upstream frequency is expanded from 42MHz up to 204MHz, and the downstream frequency extends from 258MHz up to 1218MHz.

Because standard MoCA Band D starts at 1125MHz, an overlap zone exists between 1125MHz and 1218MHz. If your cable modem begins using these frequencies, standard MoCA signals can cause modem micro-disconnects. The solution is using MoCA adapters with a Band D-Low hardware switch (like the ASUS MA-25) or adding a dedicated high-split filter to isolate the modem.

Complete Summary & Safe Deployment Checklist

  • For 100% of fiber internet customers (AT&T, Verizon Fios, Frontier): Zero interference possible.
  • For standard cable customers (DOCSIS 3.0 / standard 3.1): Zero interference when using a 70dB PoE filter.
  • For high-split cable customers: Toggle MoCA adapter to Band D-Low or separate modem coax run.

High-Split vs Mid-Split DOCSIS 3.1 Engineering Details

🎮 Gaming & Latency Fix Instant Route Optimization & Anti-Throttling

Experiencing packet loss, jitter spikes, or evening ISP throttling? Connect directly to dedicated gaming routes or bypass traffic shaping:

🚀 Try ExitLag (3 Days Free) → 🦈 Surfshark ($2.19/mo · Unlimited Devices) → 🛡️ NordVPN (30-Day Money-Back Trial) →

Cable operators are modernizing their Hybrid Fiber-Coaxial (HFC) networks to deliver symmetrical gigabit broadband. Understanding the three main split types prevents configuration surprises:

  • Low-Split (Traditional): Upstream 5-42MHz, Downstream 54-1002MHz. 100% compatible with standard MoCA Band D (1125-1675MHz) with zero adjustments.
  • Mid-Split: Upstream 5-85MHz, Downstream 108-1002MHz. 100% compatible with standard MoCA.
  • High-Split (DOCSIS 3.1 / 4.0): Upstream 5-204MHz, Downstream 258-1218MHz. Overlaps with lower MoCA channels (1125-1218MHz). Solution: Toggle MoCA adapters to Band D-Low or use a dedicated direct coax cable for the modem.

3 Golden Rules for Interference-Free Coexistence

  1. Always install a 70dB MoCA PoE filter directly on the cable modem’s coaxial input port if using a shared coax line.
  2. Use high-quality RG6 quad-shield coaxial patch cables rather than thin RG59 cables.
  3. If upstream modem power levels fluctuate, isolate the modem onto a separate direct coaxial run from the street.

Real-World Frequency Verification on Cable Modems

To confirm that your cable modem is operating safely without MoCA interference, log into your modem's diagnostic page (typically 192.168.100.1) and check downstream channel frequencies. If all locked SC-QAM and OFDM downstream channels remain below 1002MHz, your cable modem and MoCA network are 100% isolated and operating in complete harmony.

Final Coexistence Summary

With a standard $10 70dB MoCA PoE filter installed at the point of entry, you can enjoy ultra-fast 2.5Gbps MoCA networking across all rooms with zero impact on your cable broadband or TV service.

Coaxial Shielding & Ingress Noise Elimination

High-frequency MoCA signals (1125-1675MHz) are highly sensitive to loose coaxial F-connectors. Always hand-tighten all coaxial cable connections securely and use a small wrench to apply a 1/4-turn snug fit, preventing radio ingress noise from cell towers and Wi-Fi routers from degrading your cable broadband line.

DOCSIS 4.0 Frequency Future-Proofing (ESD vs FDD)

As cable ISPs transition to DOCSIS 4.0 Extended Spectrum DOCSIS (ESD) up to 1794MHz, MoCA 2.5 adapters will utilize Band D-Low or dedicated dark coax lines to maintain complete isolation, ensuring ongoing longevity for your home networking infrastructure.

Signal Integrity, NEXT Crosstalk & TIA-568 Certification for Does MoCA Interfere with DOCSIS 3.1 Internet or Cable TV? (Frequency Explained)

In physical-layer deployments involving Does MoCA Interfere with DOCSIS 3.1 Internet or Cable TV? (Frequency Explained), high-frequency packet loss rarely stems from raw copper breakages; instead, it is triggered by Near-End Crosstalk (NEXT), return loss reflections, and untwisted pair terminations exceeding the 13 mm (0.5 inch) ANSI/TIA-568.2-D specification. When operating at 2.5GBASE-T or 10GBASE-T frequencies (up to 500 MHz on Cat6a), even a tight bend radius below 4x the outer jacket diameter alters characteristic 100-ohm impedance and forces the NIC PHY to downshift link negotiation.

For installations integrating does moca interfere with docsis 3.1, moca frequency vs cable internet, moca band d vs docsis high split, how to prevent moca interference, always separate unshielded twisted pair (UTP) runs from parallel 120V/240V AC Romex power lines by at least 15 cm (6 inches), crossing high-voltage conduits exclusively at 90-degree angles. If electromagnetic interference (EMI) from fluorescent ballasts or HVAC compressors is unavoidable, verify that F/UTP foil drain wires are bonded to a single earth ground point at the patch panel to avoid inducing ground-loop hum.

Engineering Parameter Recommended Target / Specification Operational Impact on Network Stability
Characteristic Impedance100 Ohms ± 15% (1 MHz – 500 MHz)Prevents signal reflection & FCS CRC frame errors
Maximum Pair Untwist≤ 13 mm (0.5 in) at Keystone / RJ45 PinPreserves NEXT crosstalk margin on 10Gbps links
Minimum Bend Radius4× Cable Outer Diameter (Static)Prevents internal conductor micro-fractures & attenuation
Conductor Metallurgy100% Pure Bare Solid Annealed Copper (23 AWG)Eliminates PoE++ voltage drop & thermal rise vs CCA

Field Deployment & Verification Checklist

Before finalizing your setup for Does MoCA Interfere with DOCSIS 3.1 Internet or Cable TV? (Frequency Explained), run a baseline diagnostic before and after applying hardware or firmware changes. Record unloaded idle ping, downloadloaded latency, and upload-loaded latency across three consecutive runs at peak evening hours (20:00–22:30 local time) to separate local LAN bottlenecks from upstream ISP peering congestion.
