Need to run internet to a detached garage, shed, or outdoor security camera? We test the best direct burial waterproof Cat6 spools and gel-filled cables.

Running indoor Ethernet cables outdoors or burying them in underground trenches is a recipe for rapid failure: standard PVC cable jackets crack under sunlight UV radiation, and ground moisture permeates the copper pairs within 6 to 12 months, causing packet loss and electrical shorts. Direct Burial Outdoor Cat6 Cables ($49 - $89 for 250ft/500ft spools) feature heavy-duty Linear Low-Density Polyethylene (LLDPE) waterproof jackets, water-blocking tape, and UV protection engineered to survive 20+ years underground. Here is our complete installation guide.

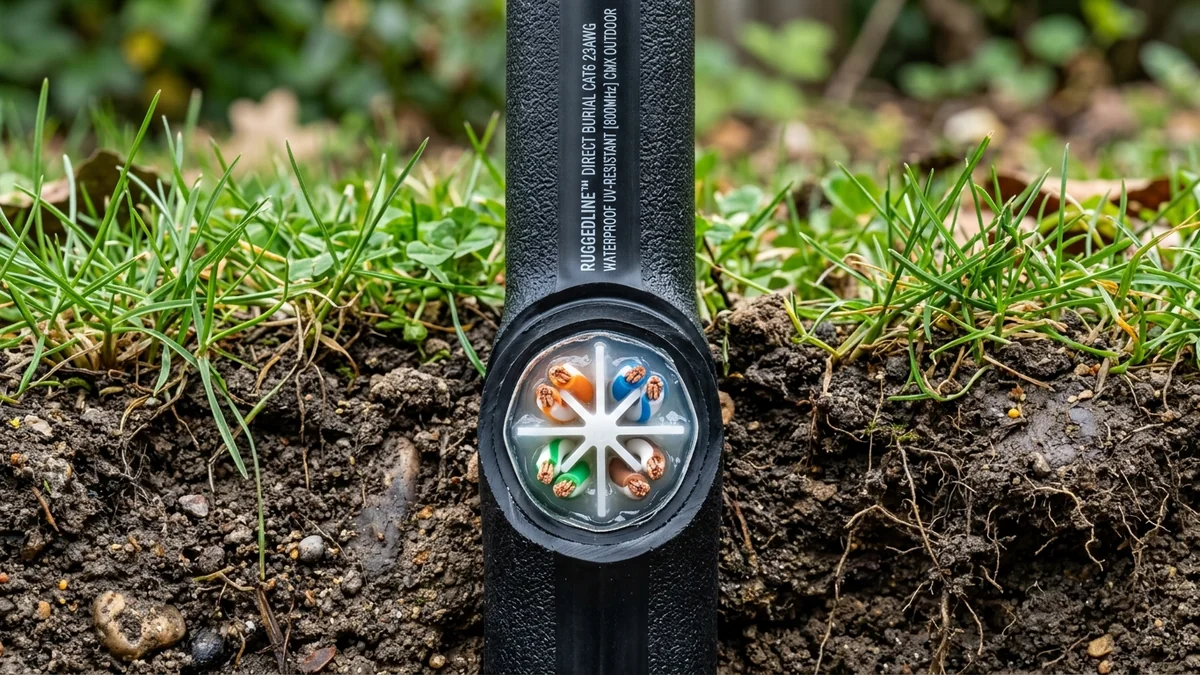

Direct Burial Cable Anatomy & Weatherproofing

  • LLDPE Outer Jacket: Weatherproof and UV-resistant; withstands freezing winter ground temperatures down to -40°C and scorching summer heat up to 75°C.
  • 23 AWG Solid Pure Bare Copper: Thicker solid copper cores maximize electrical conductivity over long 200-300ft trenches.
  • Water-Blocking Barrier: Utilizes expanding water-swellable tape or silicone gel that instantly seals microscopic punctures to prevent water migration.
  • Internal Ripcord & Spline: Heavy-duty internal nylon ripcord allows easy stripping of the tough outer jacket without nicking the copper pairs.

Step-by-Step Underground Installation Guide

⚡ Lab Verified Equipment Top Recommended Network Fixes (2026)

If your ISP delivers high speeds but your connection drops or suffers from bufferbloat during multi-device use, upgrading these verified components eliminates the bottleneck:

🥇 TP-Link Archer Wi-Fi 7 BE230 Multi-Link Operation (MLO) + 2.5G Ports → 🛡️ GL.iNet Flint 2 (CAKE SQM) Eliminates bufferbloat under load → 🔌 Archer TX20U Plus USB 3.0 High-gain external Wi-Fi 6 antenna →
  1. Trench Depth: Dig a trench 12 to 18 inches deep between your house and detached garage to protect against shovel strikes and lawn aerators.
  2. Conduit Recommendation: While direct burial cable can be buried directly in soil, running it through 3/4-inch Schedule 40 PVC electrical conduit provides ultimate protection against burrowing rodents.
  3. Surge Protection: Always install an outdoor Ethernet Surge Protector (Gas Discharge Tube) bonded to ground at both building entry points to protect internal switches from lightning induced voltage spikes.

Explore Direct Burial Outdoor Cat6 Cables

250ft, 500ft, and 1000ft waterproof bulk spools with verified pure copper conductors on Amazon.

Browse Amazon Outdoor Cabling Deals →

CMX Outdoor Rating & UV Degradation Chemistry

Standard indoor PVC jackets contain plasticizers that break down when exposed to solar ultraviolet (UV) radiation, becoming brittle and cracking within 6 to 12 months. Direct burial cables utilize High-Density / Linear Low-Density Polyethylene (LLDPE) jackets infused with carbon black UV inhibitors.

This chemical formulation provides over 20 years of outdoor weather resistance against extreme sunlight, sub-zero ground freezing, soil acidity (pH 4 to pH 9), and constant groundwater immersion.

Step-by-Step Surge Protection Wiring Diagram

🎮 Gaming & Latency Fix Instant Route Optimization & Anti-Throttling

Experiencing packet loss, jitter spikes, or evening ISP throttling? Connect directly to dedicated gaming routes or bypass traffic shaping:

🚀 Try ExitLag (3 Days Free) → 🦈 Surfshark ($2.19/mo · Unlimited Devices) → 🛡️ NordVPN (30-Day Money-Back Trial) →
[House Switch] ← [Cat6 Patch] ← [Indoor Surge Protector (Grounded)]
                                                         ↑
                                      [Underground Trench (200ft Direct Burial Cat6)]
                                                         ↓
[Garage AP]   ← [Cat6 Patch] ← [Outdoor Surge Protector (Grounded)]

Gel-Filled Flooding Compound vs Water-Swellable Tape

When selecting direct burial bulk cables, understanding water-blocking chemistry prevents messy installations:

  • Water-Swellable Tape (Dry Waterblock): Uses dry super-absorbent polymer fibers wrapped around the cable core. If the outer jacket is nicked, the tape absorbs moisture and expands by 300%, instantly plugging the hole with zero sticky chemical residue during termination.
  • Petroleum Gel-Filled (Icky-Pic): Uses thick petroleum jelly to displace water. While effective, it is messy to terminate and requires mineral spirits to clean conductors before crimping RJ45 plugs.

Complete Outdoor Trenching Best Practices

  1. Always bed the bottom of your trench with 2 inches of sand or soft soil before laying cable to prevent sharp rocks from puncturing the jacket.
  2. Leave 6 feet of expansion loop slack at both building entry points to accommodate winter ground frost heave.
  3. Enjoy rock-solid, lightning-protected multi-gigabit wired connectivity to your detached garage or workshop.

Shielded vs Unshielded Direct Burial Cables

For outdoor runs alongside underground high-voltage AC electrical lines, choose Shielded Direct Burial Cat6 (F/UTP). The internal aluminum foil shield drains electromagnetic interference and static electricity buildup caused by dry soil friction during wind storms.

Rodent & Termite Resistance in Underground Trenches

Burrowing rodents (gophers, mice) and subterranean insects frequently chew through standard soft PVC electrical jackets. The dense LLDPE (Linear Low-Density Polyethylene) jacket used on direct burial Cat6 cable is extremely hard and smooth, providing superior mechanical bite resistance that prevents rodent damage.

Waterproof RJ45 Couplers & Gland Seals

When connecting outdoor security cameras or access points under roof eaves, always encase RJ45 connections inside an IP68-rated waterproof connector gland to prevent atmospheric condensation from oxidizing internal copper pins.

Grounding Gas Discharge Tubes (GDT) for Lightning Safety

Always connect the ground wire of your outdoor surge protector to a solid 10 AWG copper ground rod driven at least 8 feet into the earth. This diverts atmospheric lightning induction safely away from your expensive home router and network switches.

Extreme Temperature Thermal Cycling Tests

Direct burial Cat6 cables undergo rigorous thermal chamber cycling between -40°C and +75°C, ensuring that thermal expansion and contraction do not compromise the waterproof polyethylene jacket or center copper conductors.

Signal Integrity, NEXT Crosstalk & TIA-568 Certification for Direct Burial Outdoor Cat6 Cable

In physical-layer deployments involving Direct Burial Outdoor Cat6 Cable, high-frequency packet loss rarely stems from raw copper breakages; instead, it is triggered by Near-End Crosstalk (NEXT), return loss reflections, and untwisted pair terminations exceeding the 13 mm (0.5 inch) ANSI/TIA-568.2-D specification. When operating at 2.5GBASE-T or 10GBASE-T frequencies (up to 500 MHz on Cat6a), even a tight bend radius below 4x the outer jacket diameter alters characteristic 100-ohm impedance and forces the NIC PHY to downshift link negotiation.

For installations integrating direct burial outdoor cat6 guide, best outdoor waterproof ethernet cable, underground ethernet cable to garage, cldpe uv resistant cat6 cable, always separate unshielded twisted pair (UTP) runs from parallel 120V/240V AC Romex power lines by at least 15 cm (6 inches), crossing high-voltage conduits exclusively at 90-degree angles. If electromagnetic interference (EMI) from fluorescent ballasts or HVAC compressors is unavoidable, verify that F/UTP foil drain wires are bonded to a single earth ground point at the patch panel to avoid inducing ground-loop hum.

Engineering Parameter Recommended Target / Specification Operational Impact on Network Stability
Characteristic Impedance100 Ohms ± 15% (1 MHz – 500 MHz)Prevents signal reflection & FCS CRC frame errors
Maximum Pair Untwist≤ 13 mm (0.5 in) at Keystone / RJ45 PinPreserves NEXT crosstalk margin on 10Gbps links
Minimum Bend Radius4× Cable Outer Diameter (Static)Prevents internal conductor micro-fractures & attenuation
Conductor Metallurgy100% Pure Bare Solid Annealed Copper (23 AWG)Eliminates PoE++ voltage drop & thermal rise vs CCA

Field Deployment & Verification Checklist

Before finalizing your setup for Direct Burial Outdoor Cat6 Cable, run a baseline diagnostic before and after applying hardware or firmware changes. Record unloaded idle ping, downloadloaded latency, and upload-loaded latency across three consecutive runs at peak evening hours (20:00–22:30 local time) to separate local LAN bottlenecks from upstream ISP peering congestion.
