Should you punch down in-wall cables into a patch panel or crimp RJ45 plugs directly into your switch? We explain the mechanical and electrical advantages of patch panels.

When wiring a home network closet, many first-time DIYers ask: 'Why do I need to spend money on a patch panel when I can just crimp male RJ45 plugs on the ends of my in-wall cables and plug them directly into my switch?' While direct termination seems faster, it violates commercial structured cabling standards and leads to broken copper wires, port fatigue, and intermittent network dropouts. Here is the engineering breakdown of why patch panels are essential.

Solid Copper vs Stranded Wire Mechanical Physics

  • In-Wall Solid Copper Cables: Engineered with rigid single-strand conductors for low signal attenuation over long distances. Repeated bending and flexing causes solid copper to fatigue and snap internally.
  • Patch Cords (Stranded Wire): Built from hundreds of hair-thin copper strands designed to flex thousands of times without breaking.
  • The Patch Panel Bridge: The patch panel permanently anchors rigid solid in-wall cables to solid 110-IDC terminals, while flexible stranded patch cords connect to the switch, protecting in-wall infrastructure for decades.

Switch Port Contact Wear & Replacement Costs

⚡ Lab Verified Equipment Top Recommended Network Fixes (2026)

If your ISP delivers high speeds but your connection drops or suffers from bufferbloat during multi-device use, upgrading these verified components eliminates the bottleneck:

🥇 TP-Link Archer Wi-Fi 7 BE230 Multi-Link Operation (MLO) + 2.5G Ports → 🛡️ GL.iNet Flint 2 (CAKE SQM) Eliminates bufferbloat under load → 🔌 Archer TX20U Plus USB 3.0 High-gain external Wi-Fi 6 antenna →

Every time you re-plug an RJ45 male connector directly into a network switch, the gold spring pins inside the switch port experience microscopic friction wear. Enterprise switch ports are typically rated for 750 insertion cycles.

If a port on an expensive $300 2.5G managed switch breaks, the entire switch must be replaced. With a patch panel, repeated patching only wears out cheap $2 patch cords or replaceable keystone jacks, saving hundreds of dollars in equipment costs.

Structured Cabling Best Practices Checklist

  1. Punch down all in-wall solid copper cables into a fixed or keystone patch panel.
  2. Label every port with clear room and jack numbers.
  3. Use short 6-inch or 1-foot flexible stranded Cat6 patch cords to bridge from the patch panel to your switch.

Professional Port Labeling & Troubleshooting Speed

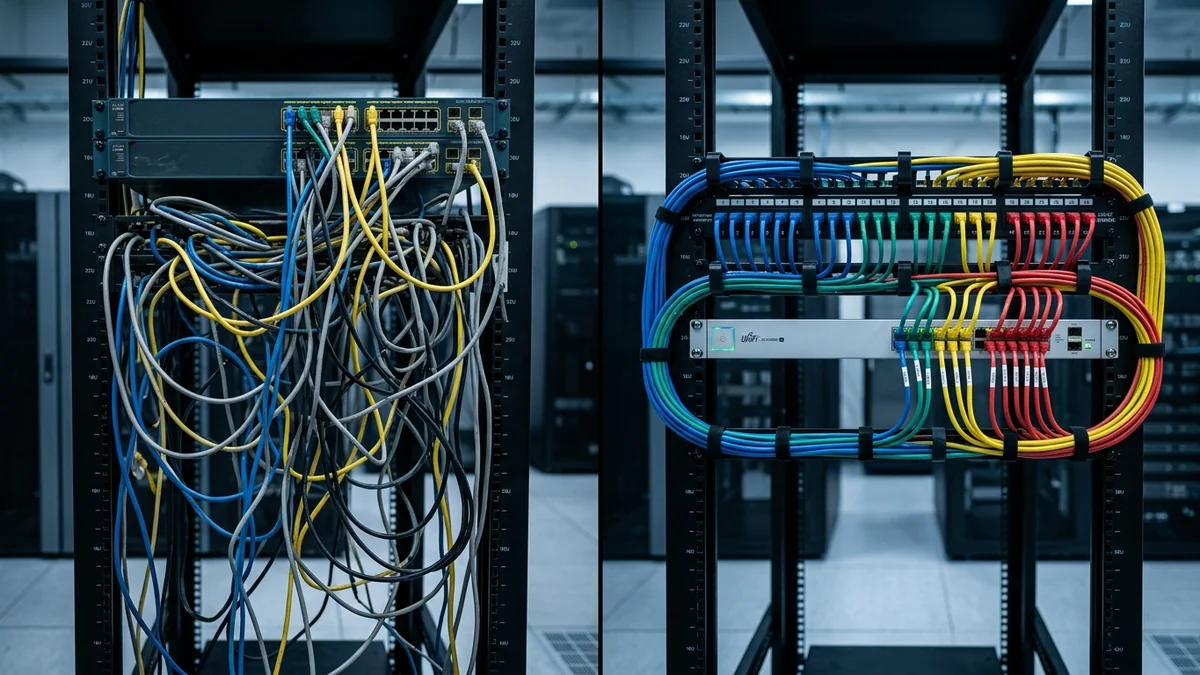

When 24 unlabeled black cables connect directly into a switch, finding which cable leads to the upstairs office requires tracing wires by hand or disconnecting random ports. A patch panel allows you to write permanent, numbered port designations (e.g., Port 1: Master Bed, Port 2: Office PC, Port 3: Living Room TV).
