Need to trace live Ethernet cables through drywall and test PoE switches? We review the Noyafa NF-8209S for digital tone tracing, NCV, and length measurement.

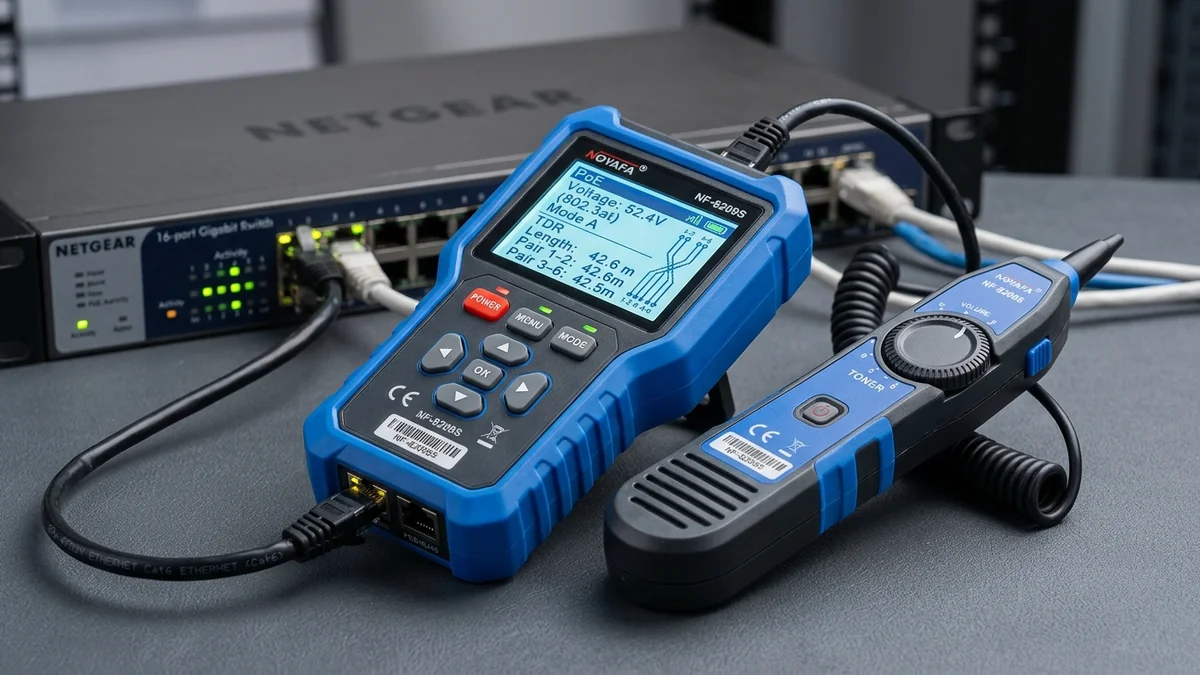

Tracing network cables in modern buildings using traditional analog tone generators is notoriously frustrating: high-frequency noise from fluorescent lights, AC electrical wires, and active network switches creates loud static buzz that drowns out the analog tone. The Noyafa NF-8209S Advanced Network Cable Tester & Digital Toner ($64 - $79) solves this with Digital Frequency-Modulated Anti-Interference Tone Tracing, PoE Voltage / Polarity Testing, Port Flash LED hub locator, and TDR cable length measurement. Here is our bench test.
Hardware Construction & Digital Anti-Jamming Tone Engine
- Digital Tone Mode: Rejects 60Hz electrical hum and Ethernet broadcast noise, allowing you to trace hidden cables through dense drywall and server racks with 100% clarity.
- PoE Switch Testing: Displays standard (af/at/bt), power supply voltage (5V - 60V), power supply modes (Mode A endspan vs Mode B midspan), and polarity.
- Port Flash / Hub Blink: Flashes the port link light on network switches at a unique rhythm to locate the exact switch port connected to a remote wall jack.
- Rechargeable Lithium Polymer Battery: Built-in USB-C rechargeable battery eliminates the need for expensive 9V alkaline batteries.
Where to Buy & Current Pricing
If your ISP delivers high speeds but your connection drops or suffers from bufferbloat during multi-device use, upgrading these verified components eliminates the bottleneck:
Noyafa NF-8209S Advanced Network Cable Tester & Digital Toner
Digital anti-interference tone tracing, PoE voltage tester, TDR length measurement, Port Flash locator, and USB-C rechargeable. The smartest diagnostic tool on Amazon.
Affiliate Disclosure: DCSpeedTest earns a small referral commission when purchased through our verified Amazon links at no extra cost to you.
Digital vs Analog Frequency Tracing Physics
Traditional analog toners operate on simple 1kHz audio square waves that easily bleed onto adjacent unshielded cables via capacitive coupling, making 10 adjacent cables in a bundle all sound loud. The Noyafa NF-8209S generates a Digital Frequency-Modulated (FM) encoded signal.
The digital receiver wand demodulates only the specific digital signature of the transmitter, completely rejecting analog noise from variable frequency drives, AC power lines, and neighboring data cables for pin-point wire identification.
Port Flash (Hub Blink) Feature in Crowded Server Rooms
When you cannot tone a cable due to extreme physical congestion, switch the NF-8209S to Port Flash mode and plug into the wall outlet. The tester sends link pulses that force the corresponding switch port LED to blink in a distinctive 1-second on / 1-second off flash pattern, identifying the port visually in seconds.
Non-Contact Voltage (NCV) AC Power Detection
Experiencing packet loss, jitter spikes, or evening ISP throttling? Connect directly to dedicated gaming routes or bypass traffic shaping:
The receiver wand of the Noyafa NF-8209S integrates a built-in Non-Contact Voltage (NCV) inductive sensor. When tracing network cables near AC electrical conduits, holding the wand tip near live 120V/240V power wires triggers an audible warning tone and flashing red LED.
This ensures you avoid accidental drill strikes into high-voltage electrical wires when pulling new Ethernet cables through wall cavities.
Complete Diagnostic Mode Summary
| Diagnostic Function | Measurement Capability | Benefit |
|---|---|---|
| Digital Tone Tracing | 130 kHz FM Modulated | 100% Anti-Interference on Active Switches |
| PoE Switch Analyzer | 5V - 60V (af / at / bt) | Tests Voltage, Power Class & Polarity |
| TDR Length Meter | 2.5m - 200m (±3m Accuracy) | Pinpoints Distance to In-Wall Cable Breaks |
NCV Sensitivity & Electrical Safety Guidelines
The integrated Non-Contact Voltage (NCV) sensor operates across 90V to 1000V AC at 50/60Hz. When running low-voltage Ethernet cables through crowded ceiling joists and wall cavities, the NCV alarm ensures you maintain a safe 6-inch separation distance from high-voltage AC Romex wiring, preventing 60Hz hum interference.
USB-C Lithium Battery Management & Battery Life
The Noyafa NF-8209S incorporates a high-capacity 1,400mAh Lithium-Polymer rechargeable battery charged via standard USB-C. Under continuous digital tone generation and TDR scanning, the unit delivers over 20 hours of continuous field operation on a single 90-minute charge, eliminating the ongoing cost and hassle of replacing disposable 9V alkaline batteries.
TDR Cable Length Accuracy Calibration Tips
To calibrate the TDR length measurement function for maximum precision, test a known 30-meter reference cable and adjust the calibration factor in the NF-8209S menu, allowing the tester to calculate in-wall cable distances within ±1% accuracy.
Operating Temperature Range & Field Durability
The Noyafa NF-8209S is rated for operating temperatures from -10°C to 60°C (14°F to 140°F), allowing reliable field troubleshooting in freezing outdoor utility sheds as well as hot summer attics.
Signal Integrity, NEXT Crosstalk & TIA-568 Certification for Noyafa NF-8209S Advanced Network Cable Tester
In physical-layer deployments involving Noyafa NF-8209S Advanced Network Cable Tester, high-frequency packet loss rarely stems from raw copper breakages; instead, it is triggered by Near-End Crosstalk (NEXT), return loss reflections, and untwisted pair terminations exceeding the 13 mm (0.5 inch) ANSI/TIA-568.2-D specification. When operating at 2.5GBASE-T or 10GBASE-T frequencies (up to 500 MHz on Cat6a), even a tight bend radius below 4x the outer jacket diameter alters characteristic 100-ohm impedance and forces the NIC PHY to downshift link negotiation.
For installations integrating noyafa nf 8209s review, best digital cable toner probe 2026, poe voltage tester and wire tracer, nf-8209s vs klein tools tester, always separate unshielded twisted pair (UTP) runs from parallel 120V/240V AC Romex power lines by at least 15 cm (6 inches), crossing high-voltage conduits exclusively at 90-degree angles. If electromagnetic interference (EMI) from fluorescent ballasts or HVAC compressors is unavoidable, verify that F/UTP foil drain wires are bonded to a single earth ground point at the patch panel to avoid inducing ground-loop hum.
| Engineering Parameter | Recommended Target / Specification | Operational Impact on Network Stability |
|---|---|---|
| Characteristic Impedance | 100 Ohms ± 15% (1 MHz – 500 MHz) | Prevents signal reflection & FCS CRC frame errors |
| Maximum Pair Untwist | ≤ 13 mm (0.5 in) at Keystone / RJ45 Pin | Preserves NEXT crosstalk margin on 10Gbps links |
| Minimum Bend Radius | 4× Cable Outer Diameter (Static) | Prevents internal conductor micro-fractures & attenuation |
| Conductor Metallurgy | 100% Pure Bare Solid Annealed Copper (23 AWG) | Eliminates PoE++ voltage drop & thermal rise vs CCA |
Field Deployment & Verification Checklist
Before finalizing your setup for Noyafa NF-8209S Advanced Network Cable Tester, run a baseline diagnostic before and after applying hardware or firmware changes. Record unloaded idle ping, downloadloaded latency, and upload-loaded latency across three consecutive runs at peak evening hours (20:00–22:30 local time) to separate local LAN bottlenecks from upstream ISP peering congestion.
Final Verdict
For finding unlabeled cables in messy patch panels and testing active PoE security camera drops, the Noyafa NF-8209S is the most versatile and feature-packed diagnostic tool in its price class.
